Glass Reinforced Plastic (GRP) is a lightweight, high-strength, and corrosion-resistant composite material widely used in construction, transportation, chemical, and marine industries. Its exceptional performance makes it a popular choice for various industrial applications. Depending on the product’s purpose and production requirements, different forming processes can be selected. This article provides a brief introduction to the common production processes for GRP.
Lamination
The lamination method is a traditional and versatile production process. It is suitable for producing complex shapes and small-batch products, such as storage tanks, irregular shells, and small containers. This method requires minimal equipment and offers high flexibility.
Process Steps:
1. Clean the mold surface and apply a release agent.
2. Apply gel-coat and resin onto the mold surface.
3. Manually lay fiberglass mats or fabrics and saturate them with resin.
4. Use a roller to compact the layers and eliminate air bubbles.
5. Allow the product to cure, then demold and trim as needed.
Spraying
Spraying involves using a spray gun to simultaneously apply resin and chopped fiberglass onto the mold surface. This method is efficient and material-efficient, making it suitable for producing large and complex products such as boat hulls, large containers, and pipes.
Process Steps:
1. Apply a release agent to the mold surface.
2. Use a spray gun to evenly apply the resin and fiberglass mixture onto the mold.
3. Use a roller to compact the material and eliminate air bubbles.
4. Allow the product to cure, then demold and trim.

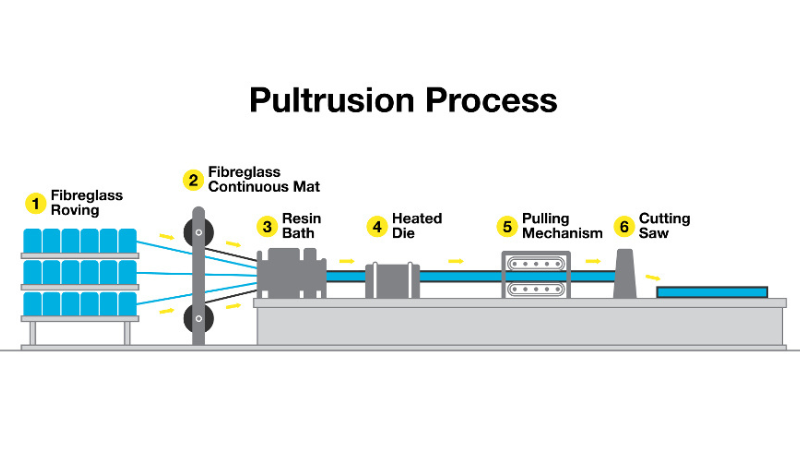

Pultrusion
Pultrusion is a continuous production process for manufacturing profiles with a constant cross-section. It offers high production speed and dimensional stability, making it ideal for mass-producing products like cable trays, handrails, and pipes.
Process Steps:
1. Pass continuous fiberglass rovings through a resin bath for thorough impregnation.
2. Pull the impregnated rovings through a heated mold to form the desired shape.
3. Continuously pull the cured product out of the mold and cut it to the required length.

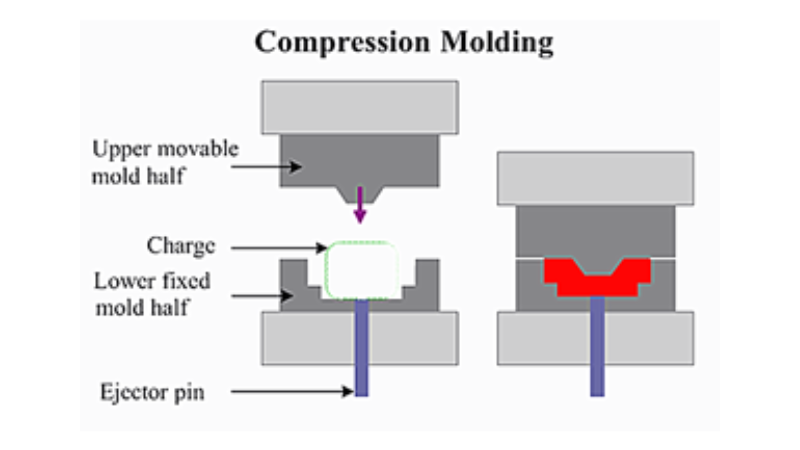

Compression Molding
Compression molding is an efficient process for producing high-precision, high-strength products. It is commonly used for the mass production of automotive components and electrical equipment enclosures.
Process Steps:
1. Place pre-impregnated fiberglass material into a preheated mold.
2. Close the mold and apply high pressure while heating to form the product.
3. Allow the product to cure, then demold and trim.

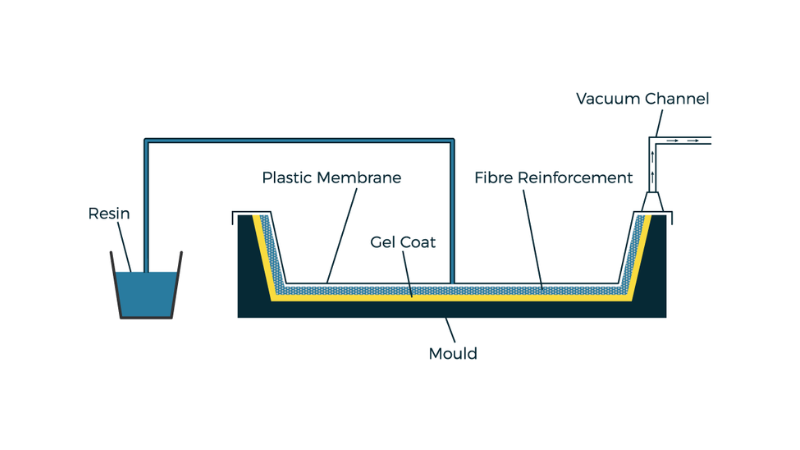

Vacuum Infusion
Vacuum infusion uses vacuum pressure to draw resin into the fiber layers, creating high-performance composite products. This process is suitable for manufacturing large and complex structures such as wind turbine blades and large yacht hulls.
Process Steps:
1. Lay fiberglass fabric in the mold and set up resin inlets and vacuum channels.
2. Cover the mold with a vacuum bag and seal it.
3. Use vacuum pressure to evenly distribute resin throughout the fiber layers.
4. Allow the product to cure, then demold and trim.

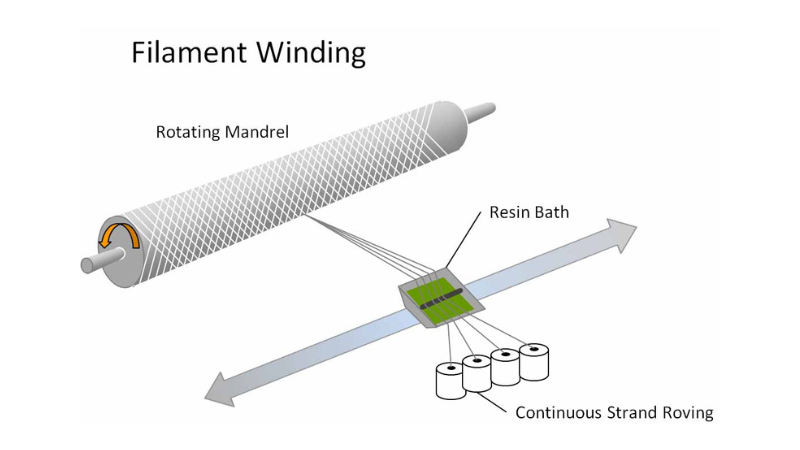

Filament Winding
Filament winding involves precisely winding resin-impregnated fiberglass onto a rotating mold. This process is ideal for producing hollow or cylindrical structures with optimized mechanical properties, such as storage tanks and high-pressure pipes.
Process Steps:
1. Immerse continuous fiberglass strands in a resin bath.
2. Wind the impregnated strands onto a rotating mold according to a set pattern.
3. Cure the product with heat, then demold and trim.
Conclusion
GRP production processes are highly versatile, balancing different product performance requirements and manufacturing costs. From the flexibility of hand lay-up to the automation of pultrusion, each method offers specific advantages for various applications. Lamination and Spraying are most widely used at present.
Below is a quick selection guide:
| Process | Application | Features |
| Lamination | Small-batch, complex shapes | Simple equipment, low cost |
| Spraying | Large components | Fast and efficient |
| Pultrusion | Continuous profiles | High efficiency, dimensional stability |
| Compression Molding | High-precision products | High quality, mass production |
| Vacuum Infusion | Large, complex structures | Superior performance, uniformity |
| Filament Winding | Cylindrical products | High strength, optimized structure |
As technology continues to advance, GRP production processes will become more intelligent and eco-friendly, offering even more high-performance material solutions. If you have any questions about GRP, feel free to click here and contact Conshell.
